Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 1818440
MFR# 1818440Series Top Notch
$33.76List $41.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

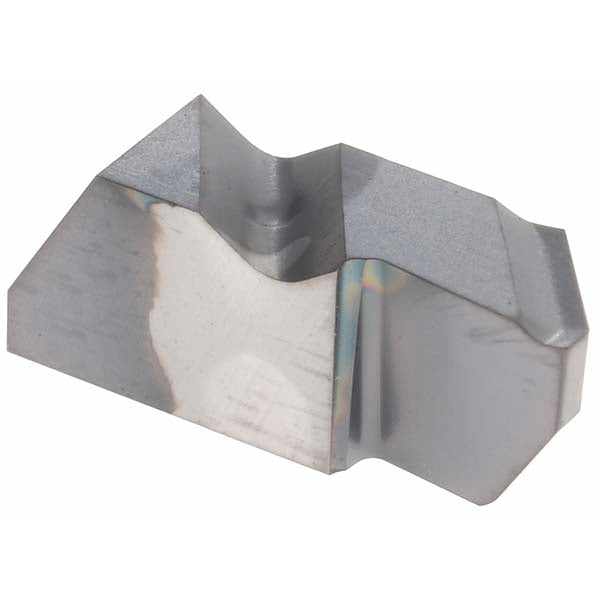

The Kennametal 1818440 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerK
Coating finishTiAlN
Coating processPVD
Corner radius0.0035
Cutting width0.1449
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.2190
Insert materialCarbide
Insert size2002
Insert styleNPD
Lead angle3
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.2000
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNPD2002RK
Multi use toolNo
RakePositive
Rake angle10
