Kennametal

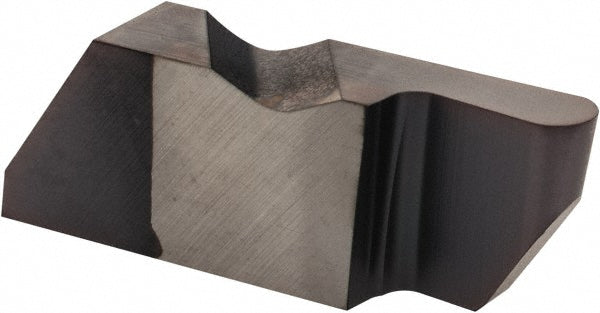

Carbide Insert, Grade KC5025, TiAlN - Kennametal 1818865
MFR# 1818865Series Top Notch
$27.22List $33.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1818865 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0626
Cutting width0.1252
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert styleNRD
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakeNeutral
