Kennametal

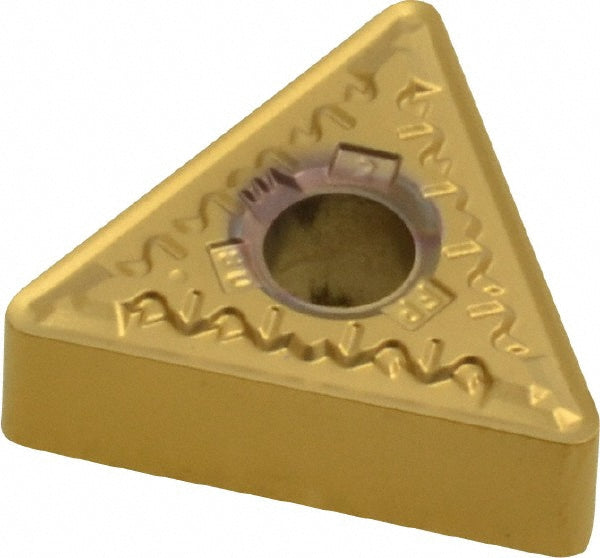

T - Triangle 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1819355
MFR# 1819355ISO/ANSI# TNMG160408Series KENLOC
$18.66List $22.37
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1819355 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeTNMG332
Ansi size code332
Chip breakerFP
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1500
Included angle60
Industry standard numberTNMG332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCermet
Insert shapeT - Triangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturers catalog number1819355
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle15
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
