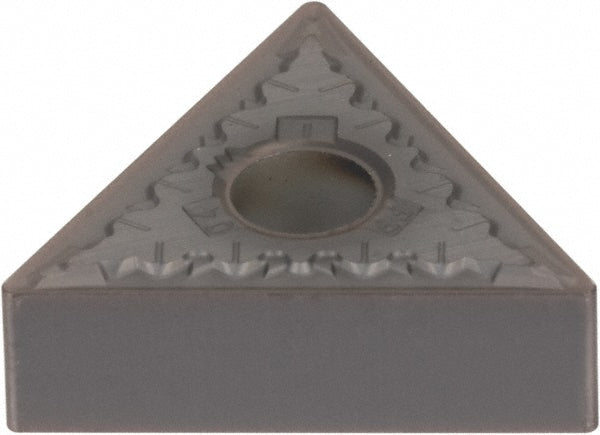

Triangle 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1819500

Kennametal

Triangle 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1819500

MFR# 1819500ISO/ANSI# TNMG331FPSeries KENLOC

$20.75List $25.32 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1819500 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNMG331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Length range0.6000 - 0.6500
Manufacturers catalog number1819500
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
