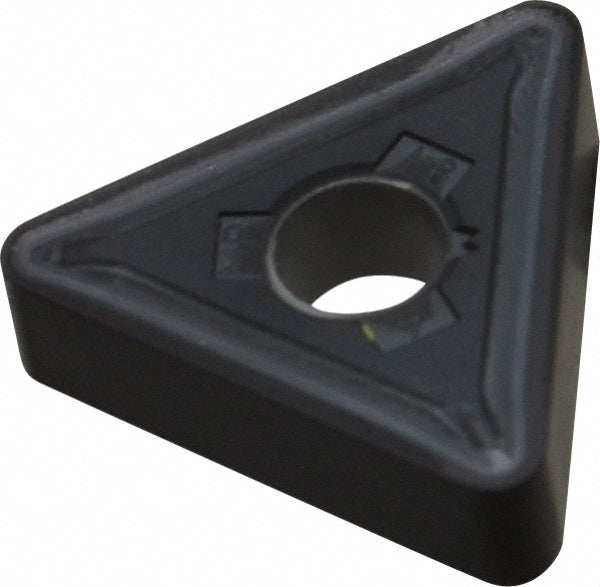

T - Triangle 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832359

Kennametal

T - Triangle 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832359

MFR# 1832359ISO/ANSI# TNMG220416Series KENLOC

$27.43List $33.47 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1832359 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG434
Ansi size code434
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle60
Industry standard numberTNMG434MP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code434
Insert styleTNMG
Insert thickness in3/16
Iso insert codeTNMG220416
Iso size code220416
Length range0.7000 - 10.0000
Manufacturers catalog number1832359
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
