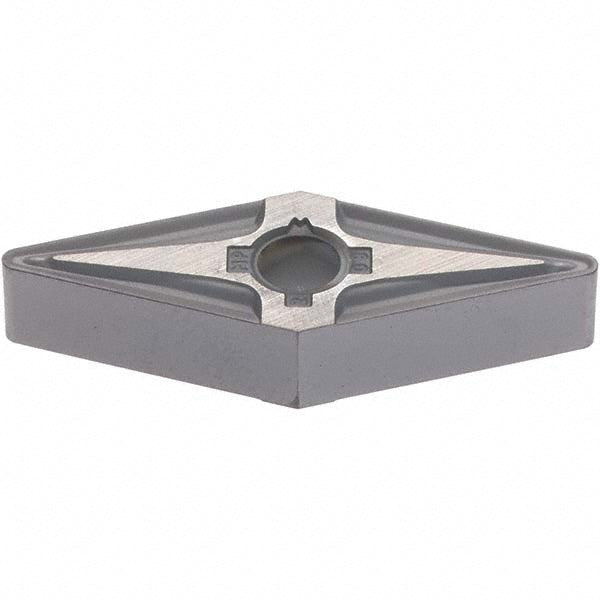

Diamond 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832361

Kennametal

Diamond 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832361

MFR# 1832361ISO/ANSI# VNMG332MPSeries KENLOC

$31.29List $38.19 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1832361 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerMP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number1832361
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
