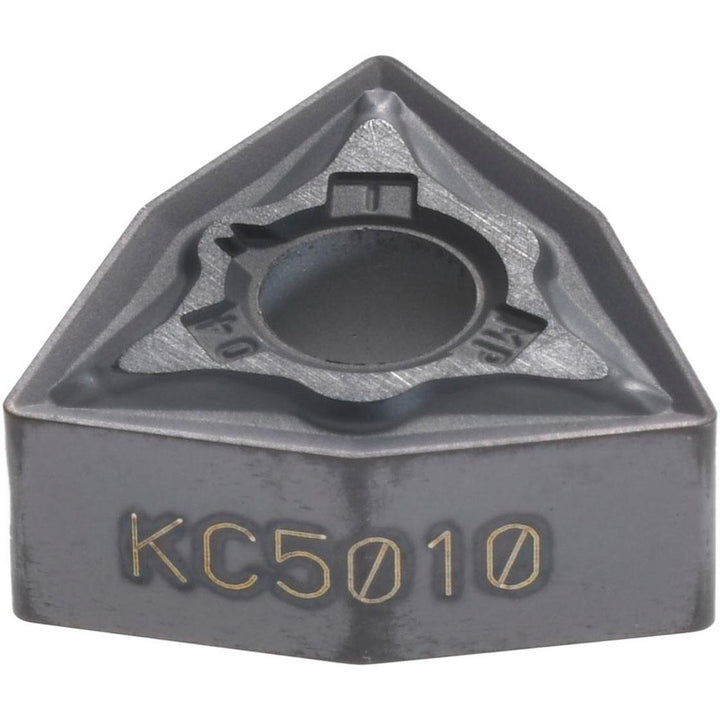

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832374

Kennametal

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1832374

MFR# 1832374ISO/ANSI# WNMG060404Series KENLOC

$21.90List $26.73 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1832374 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWNMG331
Ansi size code331
Chip breakerMP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1500
Included angle80
Industry standard numberWNMG331MP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5130
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG060404
Iso size code060404
Length range0.5000 - 0.6000
Manufacturers catalog number1832374
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5130
Wiper edgeNo
