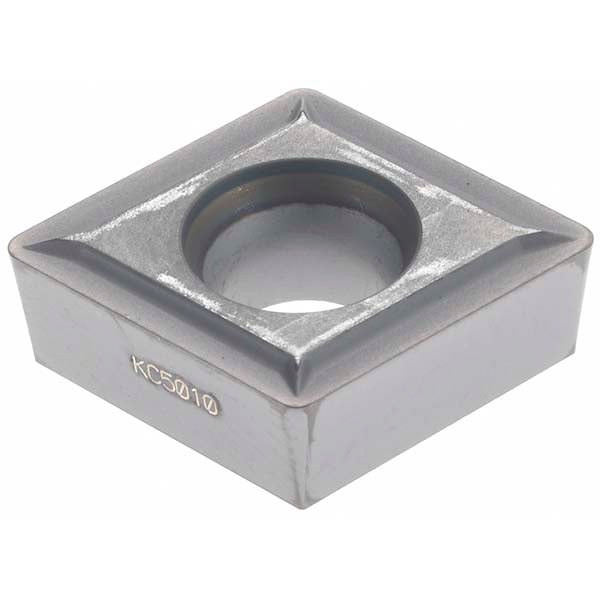

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1845218

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1845218

MFR# 1845218ISO/ANSI# CCMT120408Series Screw-On

$33.29List $40.64 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1845218 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCCMT432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2165
Included angle80
Industry standard numberCCMT432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso insert codeCCMT120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1845218
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
