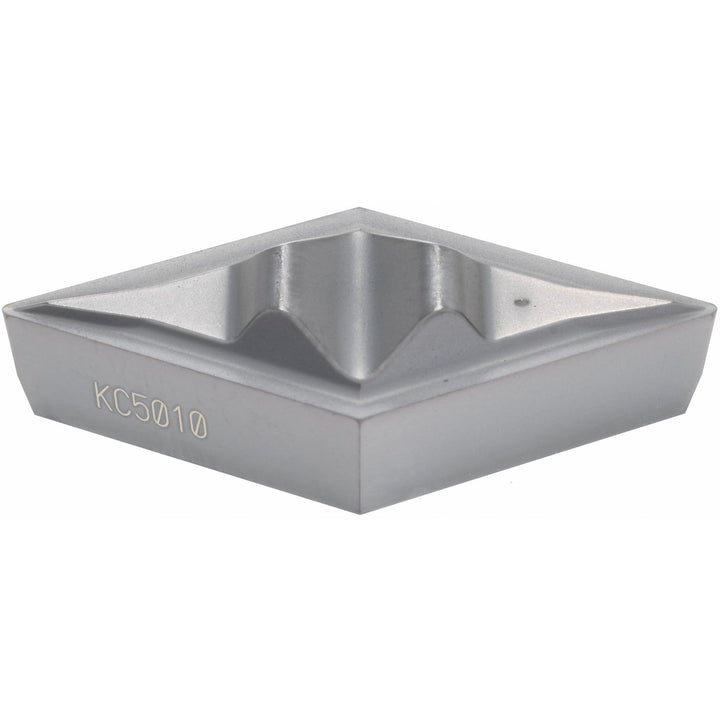

DCGR150404 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849051

Kennametal

DCGR150404 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849051

MFR# 1849051ISO/ANSI# DCGR150404Series Top Not

$37.37List $45.62 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
GradeKC5010
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849051 is a DCGR150404 carbide indexable insert, grade KC5010, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code431
Insert styleDPGR
Iso codeDCGR150404
Manufacturer gradeKC5010
Material gradeP10; P20; M10; M20; K05; K10; K15; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.2035
Msc manufacturer numberDPGR431
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR431; DCGR150404
Thickness in3/16
Width in1/2
