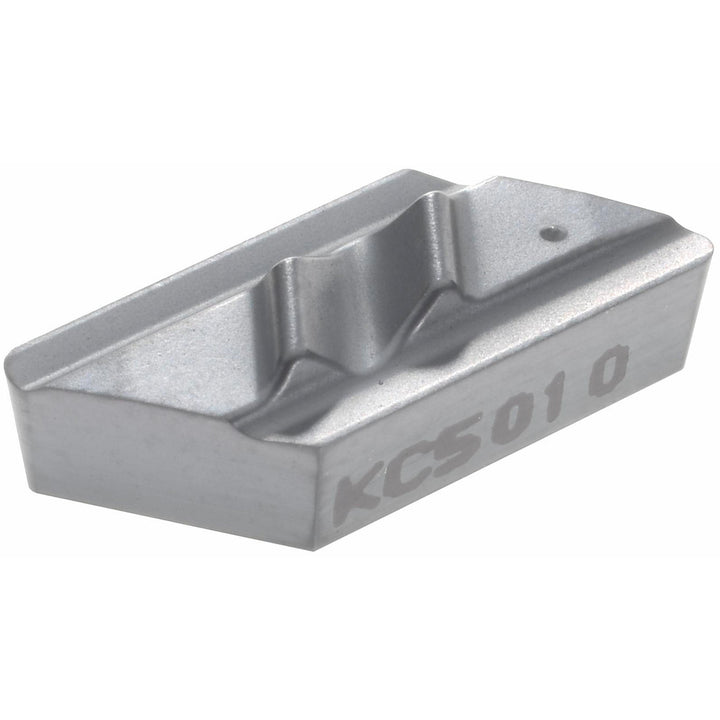

KCGX110308L15 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849243

Kennametal

KCGX110308L15 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849243

MFR# 1849243ISO/ANSI# KCGX110308L15Series Top Not

$26.31List $32.11 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849243 is a KCGX110308L15 carbide indexable insert, grade KC5010, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert size code52
Insert styleNPL
Iso codeKCGX110308L15
Manufacturer gradeKC5010
Material gradeP10; P20; M10; M20; K05; K10; K15; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.1257
Msc manufacturer numberNPL52
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3770
StandardsNPL52; KCGX110308L15
Thickness in1/8
Width in1/4
