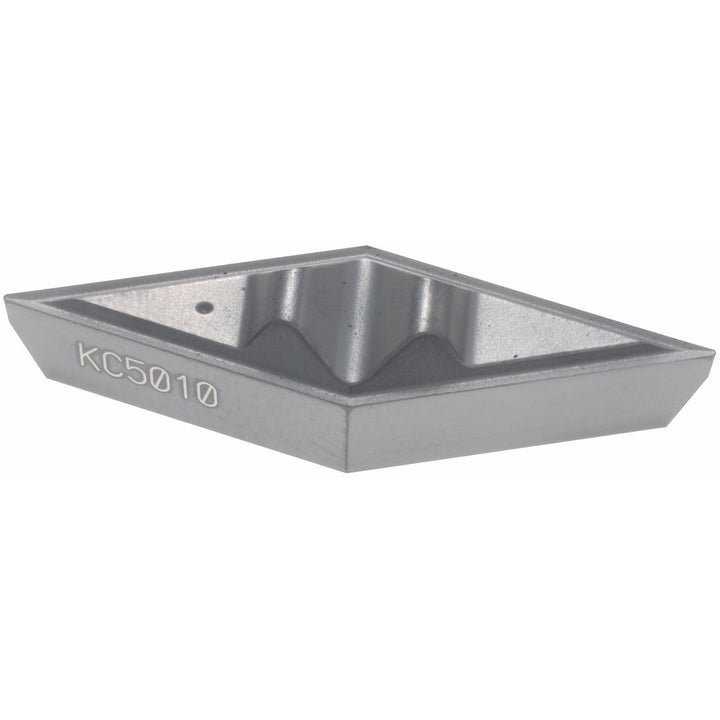

VCGR160402 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849281

Kennametal

VCGR160402 Carbide Insert, Grade KC5010, AlTiN - Kennametal 1849281

MFR# 1849281ISO/ANSI# VCGR160402Series Top Not

$33.72List $41.16 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC5010
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849281 is a VCGR160402 carbide indexable insert, grade KC5010, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code3305
Insert styleVPGR
Iso codeVCGR160402
Manufacturer gradeKC5010
Material gradeP10; P20; M10; M20; K05; K10; K15; K20; N10; N20; S10; S20; H10
Maximum depth of cut0.2179
Msc manufacturer numberVPGR3305
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR3305; VCGR160402
Thickness in3/16
Width in3/8
