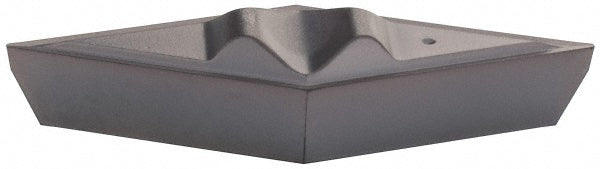

VCGR160402 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849908

Kennametal

VCGR160402 Carbide Insert, Grade KC5025, AlTiN - Kennametal 1849908

MFR# 1849908ISO/ANSI# VCGR160402Series Top Not

$36.59List $44.66 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeKC5025
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 1849908 is a VCGR160402 carbide indexable insert, grade KC5025, AlTiN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.0000
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6538
Insert materialCarbide
Insert size code3305
Insert styleVPGR
Iso codeVCGR160402
Manufacturer gradeKC5025
Material gradeUltra Fine Grain
Maximum depth of cut0.2179
Msc manufacturer numberVPGR3305
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.6538
StandardsVPGR3305; VCGR160402
Thickness in3/16
Width in3/8
