Kennametal

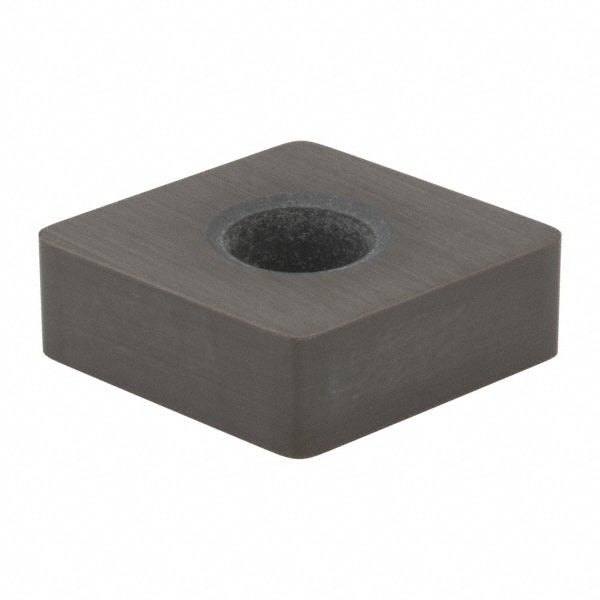

C - Diamond (Rhombic) 80-Deg 1/2" IC Ceramic Insert, Grade KY3500 - Kennametal 1851263
MFR# 1851263ISO/ANSI# CNGA120408Series KENLOC
$36.17List $43.37
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKY3500
MaterialCeramic
Description
The Kennametal 1851263 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFW
Chip breaker operationWiper - Finishing
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432T0420FW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1851263
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeYes
