Kennametal

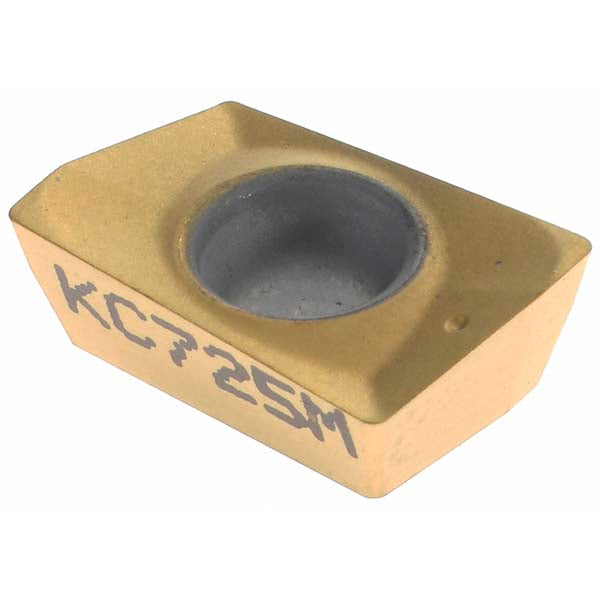

ADKT103504PDERLC Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1855169
MFR# 1855169ISO/ANSI# ADKT103504PDERLCCat# ADKT103504PDERLCSeries ADKT
$29.56List $36.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1855169 is a ADKT103504PDERLC solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1142
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code16221
Insert styleADKT
Iso codeADKT103504PDERLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT103504PDERLC
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.2130
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
