Kennametal

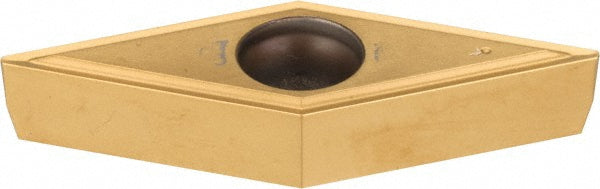

V - Diamond (Rhombic) 35-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1859604
MFR# 1859604ISO/ANSI# VBMT160404Series Screw-On
$36.05List $43.22
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1859604 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeVBMT331
Ansi size code331
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle35
Industry standard numberVBMT331LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number1859604
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
