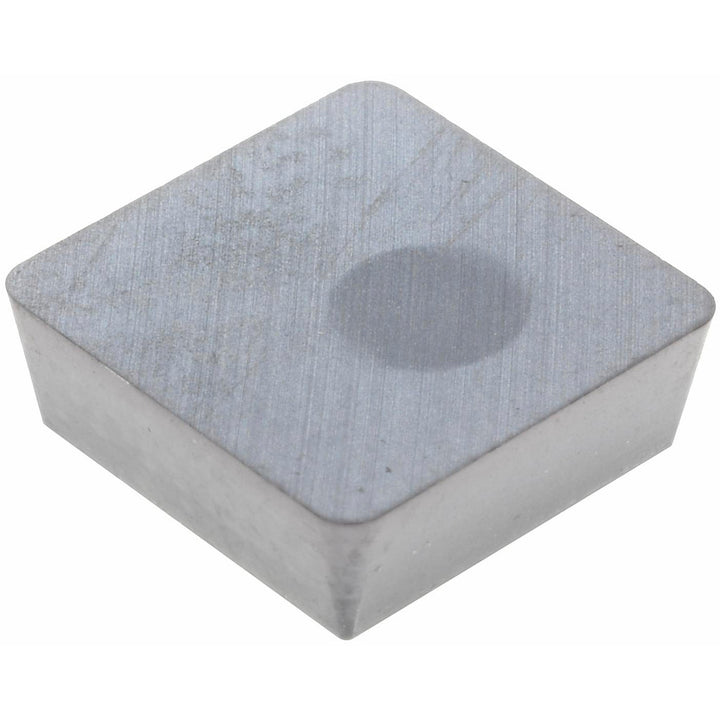

S - Square 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1865452

Kennametal

S - Square 3/8" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1865452

MFR# 1865452ISO/ANSI# SPG090308Series KENDEX

$25.81List $31.51 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1865452 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeSPG322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle90
Industry standard numberSPG322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code322
Insert styleSPG
Insert thickness in1/8
Iso insert codeSPG090308
Iso size code090308
Length range0.3000 - 0.4000
Manufacturers catalog number1865452
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
