Kennametal

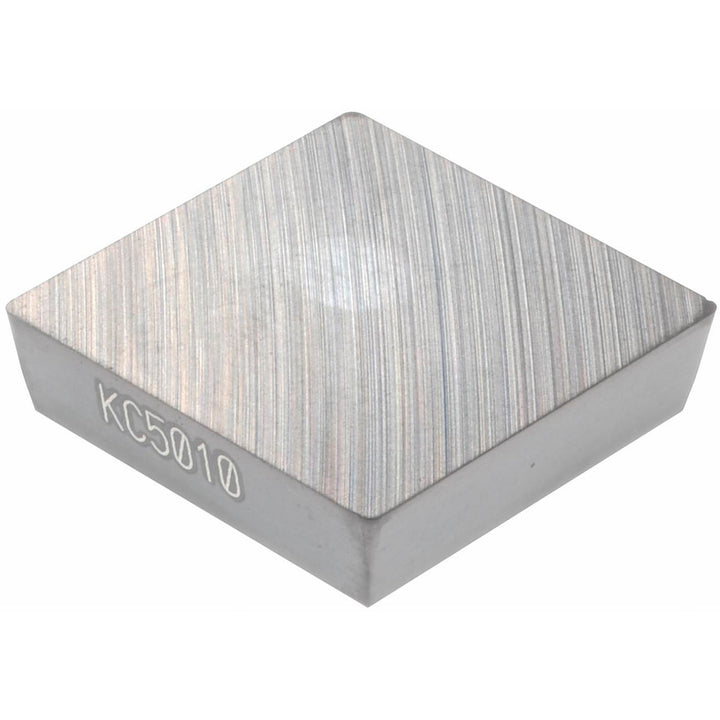

S - Square 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1865483
MFR# 1865483ISO/ANSI# SPG120304Series KENDEX
$29.94List $36.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1865483 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSPG421
Ansi size code421
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle90
Industry standard numberSPG421
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code421
Insert styleSPG
Insert thickness in1/8
Iso insert codeSPG120304
Iso size code120304
Length range0.5000 - 0.6000
Manufacturers catalog number1865483
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
