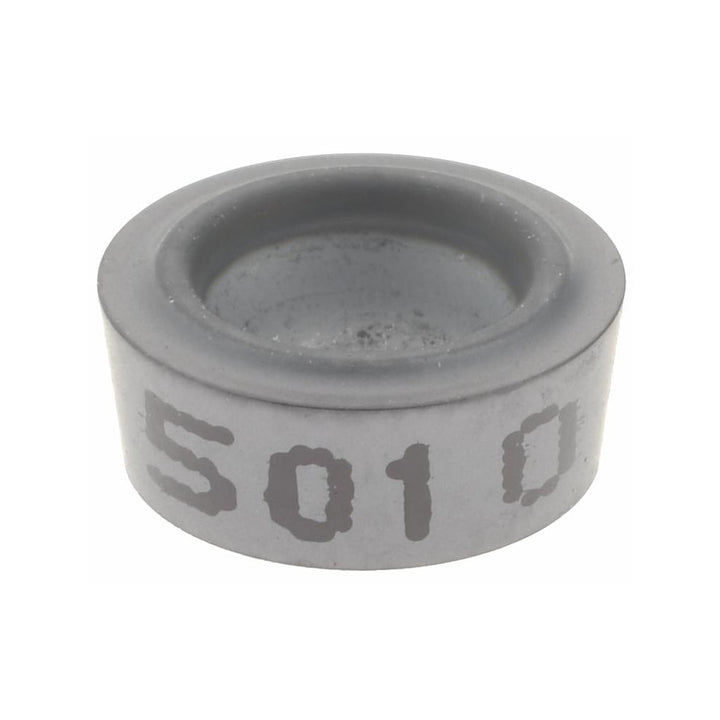

R - Round 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1866017

Kennametal

R - Round 1/4" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1866017

MFR# 1866017ISO/ANSI# RCMT060200Series Screw-On

$18.90List $23.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeR - Round
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1866017 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeRCMT215
Ansi size code215
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1102
Included angle360
Industry standard numberRCMT215
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeR - Round
Insert size code215
Insert styleRCMT
Insert thickness in3/32
Iso insert codeRCMT060200
Iso size code060200
Length range0.0000 - 0.3000
Manufacturers catalog number1866017
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
