Kennametal

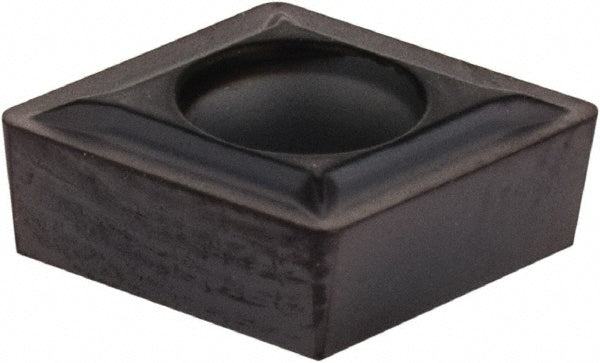

Diamond 80 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866567
MFR# 1866567ISO/ANSI# CCGT2151LFSeries Screw-On
$27.10List $33.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1866567 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCGT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCCGT
Insert thickness in3/32
Length range0.0000 - 0.3000
Manufacturers catalog number1866567
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
