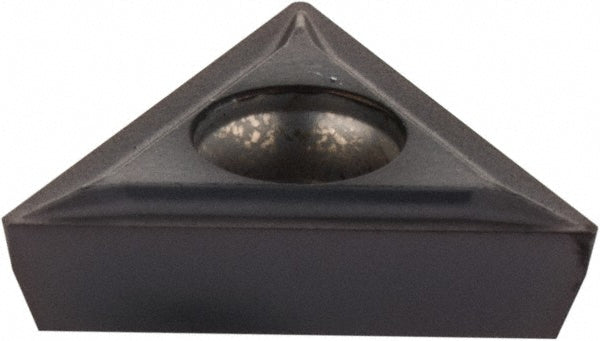

T - Triangle 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866640

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866640

MFR# 1866640ISO/ANSI# TPGT110202Series Screw-On

$29.99List $36.61 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1866640 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPGT21505
Ansi size code21505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle60
Industry standard numberTPGT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21505
Insert styleTPGT
Insert thickness in3/32
Iso insert codeTPGT110202
Iso size code110202
Length range0.4000 - 0.5000
Manufacturers catalog number1866640
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
