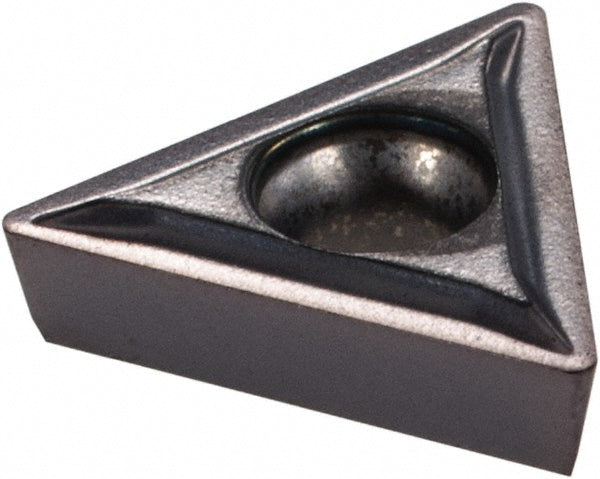

Triangle 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866641

Kennametal

Triangle 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866641

MFR# 1866641ISO/ANSI# TPGT2151LFSeries Screw-On

$29.99List $36.61 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1866641 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerLF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTPGT2151LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code2151
Insert styleTPGT
Insert thickness in3/32
Length range0.4000 - 0.5000
Manufacturers catalog number1866641
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4331in
Wiper edgeNo
