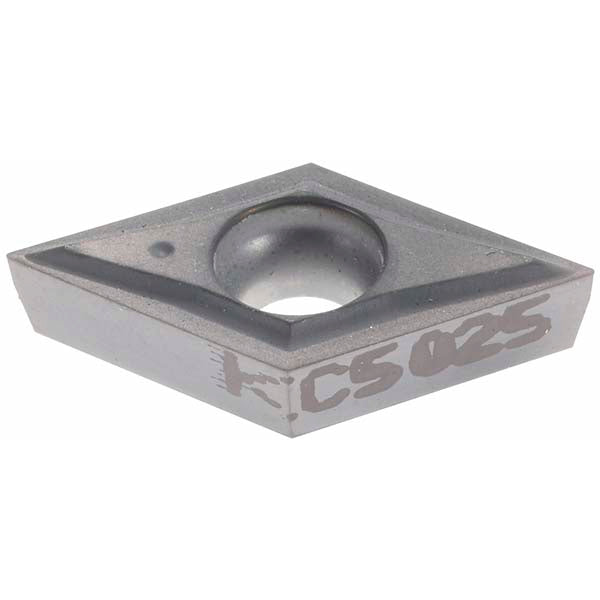

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866646

Kennametal

D - Diamond (Rhombic) 55-Deg 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866646

MFR# 1866646ISO/ANSI# DCGT070201Series Screw-On

$28.31List $34.55 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1866646 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCGT21502
Ansi size code21502
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle55
Industry standard numberDCGT21502LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21502
Insert styleDCGT
Insert thickness in3/32
Iso insert codeDCGT070201
Iso size code070201
Length range0.6000 - 0.6500
Manufacturers catalog number1866646
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
