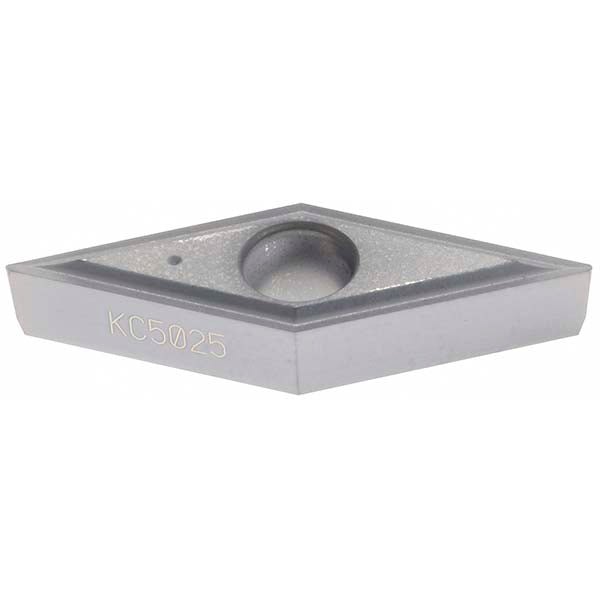

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866677

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866677

MFR# 1866677ISO/ANSI# VBGT110302Series Screw-On

$39.57List $48.30 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5025
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1866677 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBGT2205
Ansi size code2205
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1102
Included angle35
Industry standard numberVBGT2205LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso insert codeVBGT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number1866677
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
