Kennametal

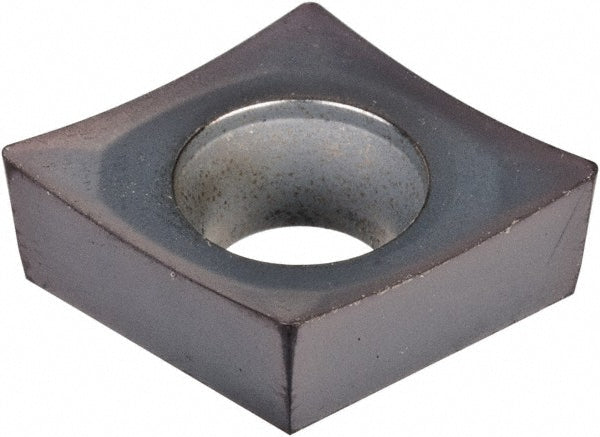

Diamond 80 3/8" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1866960
MFR# 1866960ISO/ANSI# CCGT3251HPSeries Screw-On
$30.91List $37.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1866960 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerHP
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCGT3251HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3251
Insert styleCCGT
Insert thickness in5/32
Length range0.3000 - 0.4000
Manufacturers catalog number1866960
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
