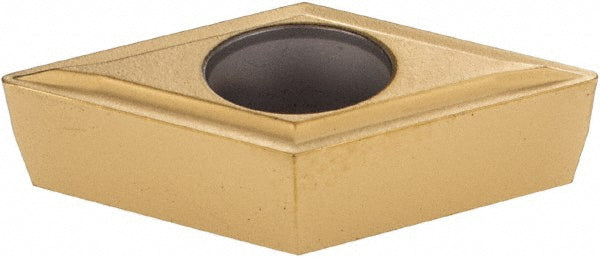

D - Diamond (Rhombic) 55-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1869975

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1869975

MFR# 1869975ISO/ANSI# DCMT11T304Series Screw-On

$30.80List $36.94 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKT315
MaterialCermet
CoatingTiN

Description

The Kennametal 1869975 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi insert codeDCMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle55
Industry standard numberDCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T304
Iso size code11T304
Length range0.7000 - 10.0000
Manufacturers catalog number1869975
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
