Kennametal

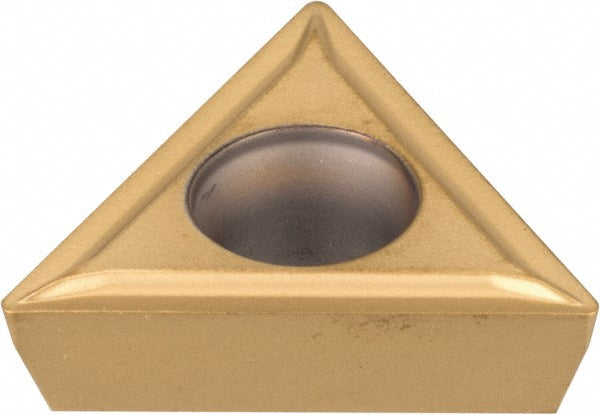

T - Triangle 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1870366
MFR# 1870366ISO/ANSI# TPMT16T304Series Screw-On
$31.28List $37.51
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1870366 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeTPMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle60
Industry standard numberTPMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCermet
Insert shapeT - Triangle
Insert size code3251
Insert styleTPMT
Insert thickness in5/32
Iso insert codeTPMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number1870366
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
