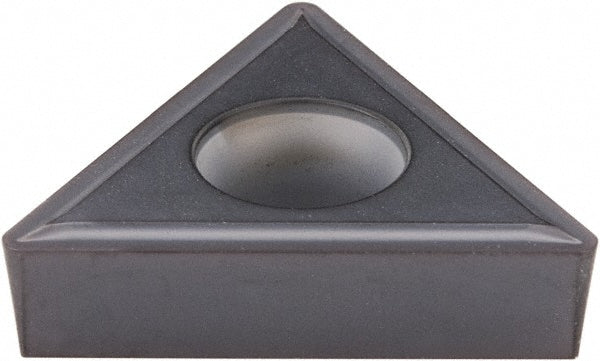

T - Triangle 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871105

Kennametal

T - Triangle 1/2" IC Carbide Insert, Grade KC5010, TiAlN - Kennametal 1871105

MFR# 1871105ISO/ANSI# TCMT220408Series Screw-On

$37.92List $46.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1871105 is a carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTCMT432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2165
Included angle60
Industry standard numberTCMT432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso insert codeTCMT220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number1871105
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
