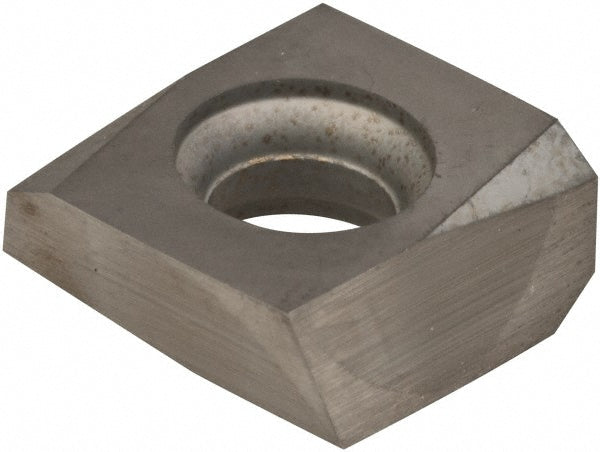

MDHX1004ZDFRGD4W Solid Carbide Insert, Grade K110M - Kennametal 1874248
MFR# 1874248ISO/ANSI# MDHX1004ZDFRGD4WCat# MDHX1004ZDFRGD4WSeries MDHX
$34.83List $42.51
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeK110M
MaterialSolid Carbide
Description
The Kennametal 1874248 is a MDHX1004ZDFRGD4W solid carbide indexable insert, grade K110M. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeMDHX1004ZDFRGD4W
Chip breakerGD
Coating processUncoated
Cutter series compatibilityFix-Perfect
Cutting edge styleWiper
Hole diameter0.2146
Inscribed circle0.4252
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1004
Insert styleMDHX
Iso codeMDHX1004ZDFRGD4W
Length0.4252
Length range0.4000 to 0.4500
Manufacturers catalog numberMDHX1004ZDFRGD4W
Manufacturer gradeK110M
Material applicationCast Iron; Non-Ferrous Metal
Material gradeC2; C3
Maximum depth of cut0.4331
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
