Kennametal

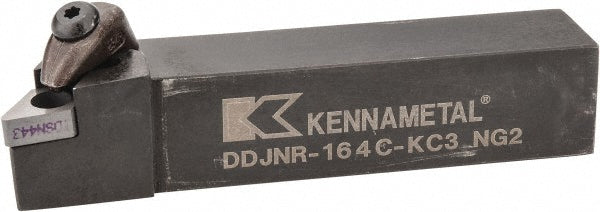

Indexable Turning & Profiling - Kennametal 1875140
MFR# 1875140Cat# DDJNR; L164CKC3Series Kenclamp
$178.73List $218.17
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1875140 indexable turning & profiling. Series Kenclamp.
Specifications
Back of bar to cutting edge1.2500
Complete insert compatibilityDN.. 432
Coolant throughNo
Hand of holderRight Hand
Head length1.2500
Insert compatibilityDN..43.
Insert holding methodClamp
Insert inscribed circle in1/2
Manufacturers catalog numberDDJNR; L164CKC3
Multi use toolNo
Overall length in5
RakeNegative
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDDJN
