Kennametal

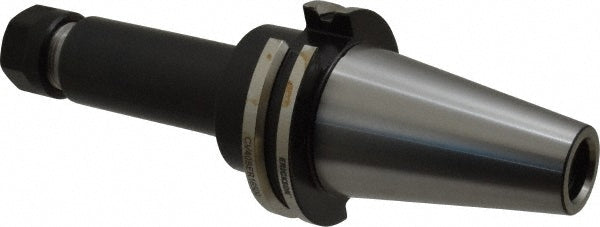

CAT40 Collet Chuck - Kennametal 1901046
MFR# 1901046
$223.24List $280.23
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1901046 is a CAT40 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.1020
Collet seriesER16
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.3937
Minimum collet capacity0.0200
Nose diameter1.1000
Overall length7.687
Projection in5
Shank typeTaper
Taper sizeCAT40
Through coolantYes
