Kennametal

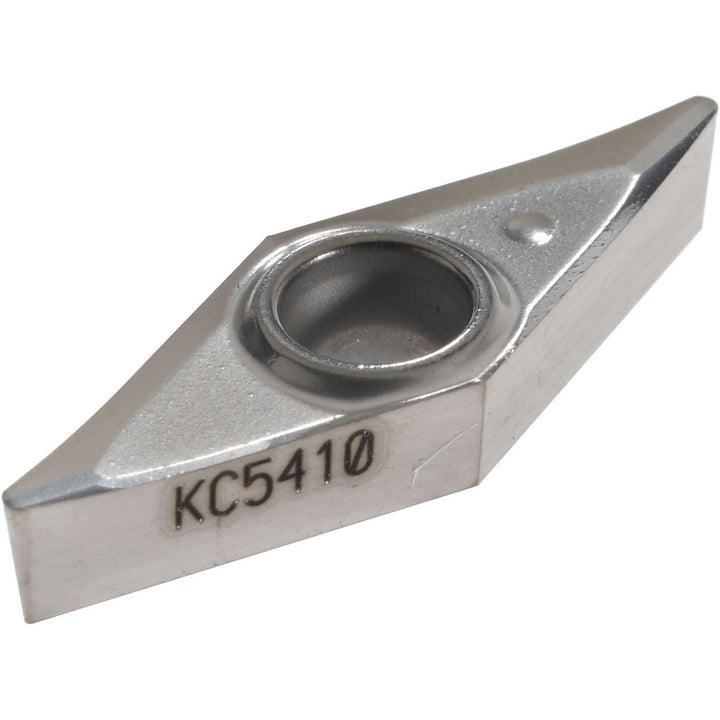

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC5410, TiB2 - Kennametal 1910044
MFR# 1910044ISO/ANSI# VBGT110304Series Screw-On
$39.57List $48.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC5410
MaterialCarbide
CoatingTiB2
Description
The Kennametal 1910044 is a carbide indexable insert, grade KC5410, TiB2 coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeVBGT221
Ansi size code221
Chip breakerHP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiB2
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle35
Industry standard numberVBGT221HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8622
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVBGT
Insert thickness in1/8
Iso insert codeVBGT110304
Iso size code110304
Length range0.7000 - 10.0000
Manufacturers catalog number1910044
Manufacturer gradeKC5410
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
