Kennametal

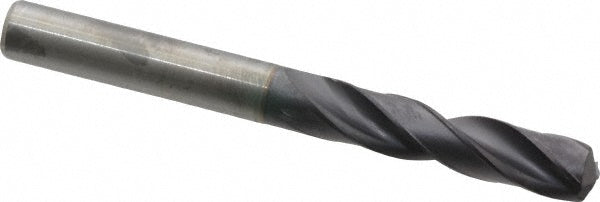

0.3150" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1913487
MFR# 1913487Series B966
$95.54List $122.36
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 1913487 is a 0.3150" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B966.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit size0.3150
Drill bit size range0.3000 to 0.3500
Drill point angle140
Drill point length (mm)1.40
Flute length (mm)41.00
Flute typeRegular Spiral
Maximum drilling depth1.1417
Number of flutes2
Overall length3.1102
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
