Kennametal
1/2" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1913548
MFR# 1913548Series B976
$291.19List $373.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiAlN
Description

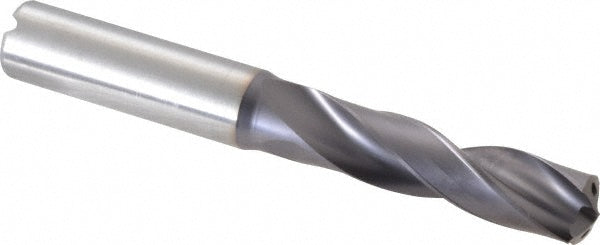

The Kennametal 1913548 is a 1/2" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B976.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size in1/2
Drill bit size range0.5000 to 0.6000
Drill point angle140
Drill point length (mm)2.20
Flute length2.3622
Flute typeRegular Spiral
Maximum drilling depth1.6929
Number of flutes2
Overall length4.2126
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
