Kennametal

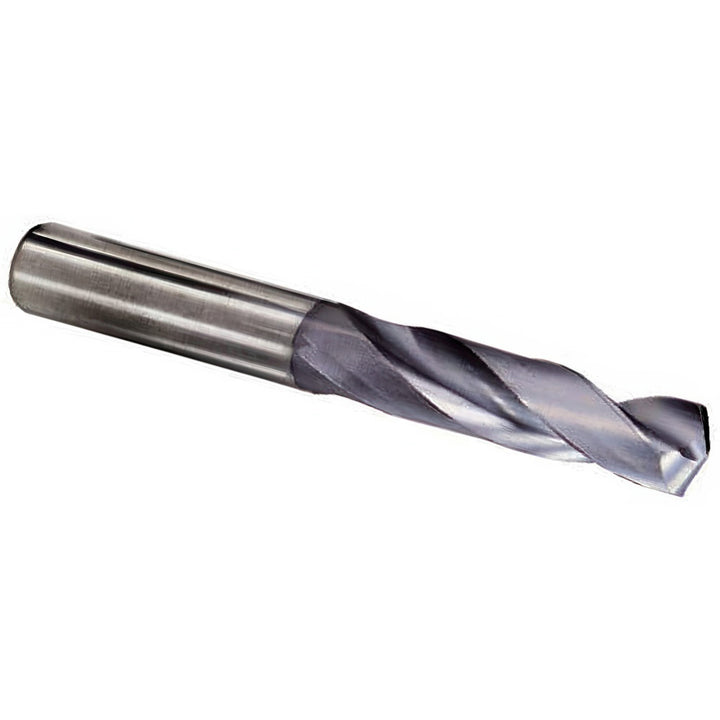

0.2677" Solid Carbide Drill Bit, TiAlN, 132° point - Kennametal 1913622
MFR# 1913622Series B978
$279.10List $357.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description
The Kennametal 1913622 is a 0.2677" Solid Carbide drill bit with a TiAlN finish, 132° point. Series B978.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeHigh Performance
Drill bit size0.2677
Drill point angle degrees132
Drill point length0.0559
Flute length2.6378
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth2.2440
Overall length4
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
