Kennametal
Carbide Insert, Grade KC5025, TiAlN - Kennametal 1923834
MFR# 1923834Cat# A4R0500M05P00GMPSeries A4
$45.82List $55.93
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description

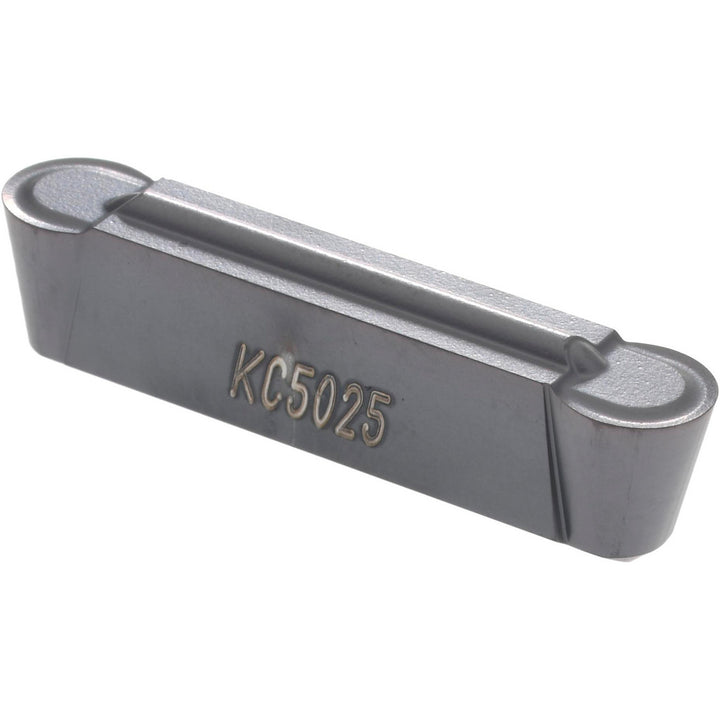

The Kennametal 1923834 is a carbide indexable insert, grade KC5025, TiAlN coated.
Specifications
Chip breakerGMP
Coating finishTiAlN
Coating processPVD
Corner radius0.0984
Cutting width0.1969
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size0500M05
Insert styleR
Manufacturers catalog numberA4R0500M05P00GMP
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.1614
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length0.9843
RakePositive
