Kennametal

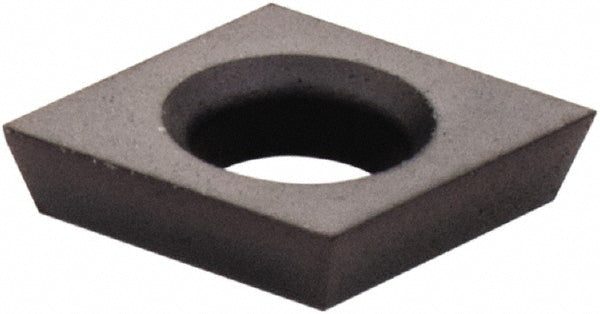

Diamond 5/32" IC Carbide Insert, Grade KC5025, TiAlN - Kennametal 1937504
MFR# 1937504Series Screw-On
$27.23List $33.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeDiamond
GradeKC5025
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 1937504 is a carbide indexable insert, grade KC5025, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.0840
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code1206
Insert styleCDHB
Length0.1587
Manufacturers catalog number1937504
Manufacturer gradeKC5025
Material gradeC2; C6
Maximum depth of cut0.0492
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15
StandardsANSI; ISO
Width0.1563
