Kennametal

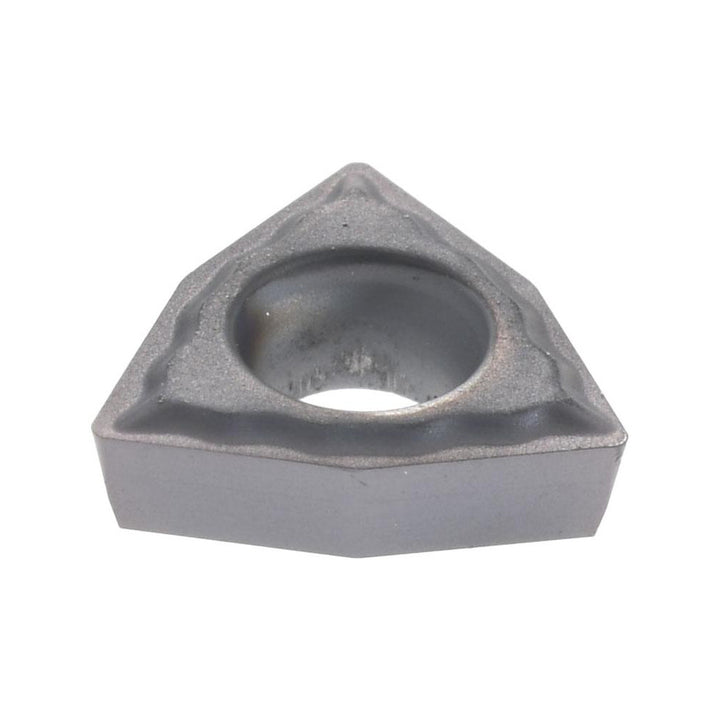

3/16" IC Solid Carbide Insert, Grade KC5010, TiN - Kennametal 1937563
MFR# 1937563
$17.37List $21.20
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeKC5010
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1937563 is a solid carbide indexable insert, grade KC5010, TiN coated.
Specifications
ChipbreakerUF
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.0850
Included angle80
Inscribed circle in3/16
Insert materialSolid Carbide
Insert size code15105
Insert styleWPGT
Manufacturer gradeKC5010
Material gradeMicrograin
Relief angle11
ShapeTrigon
Thickness in1/16
