Kennametal
TOHH110202L Solid Carbide Insert, Grade KC5010, TiN - Kennametal 1937580
MFR# 1937580ISO/ANSI# TOHH110202L
$27.36List $33.40
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKC5010
MaterialSolid Carbide
CoatingTiN
Description

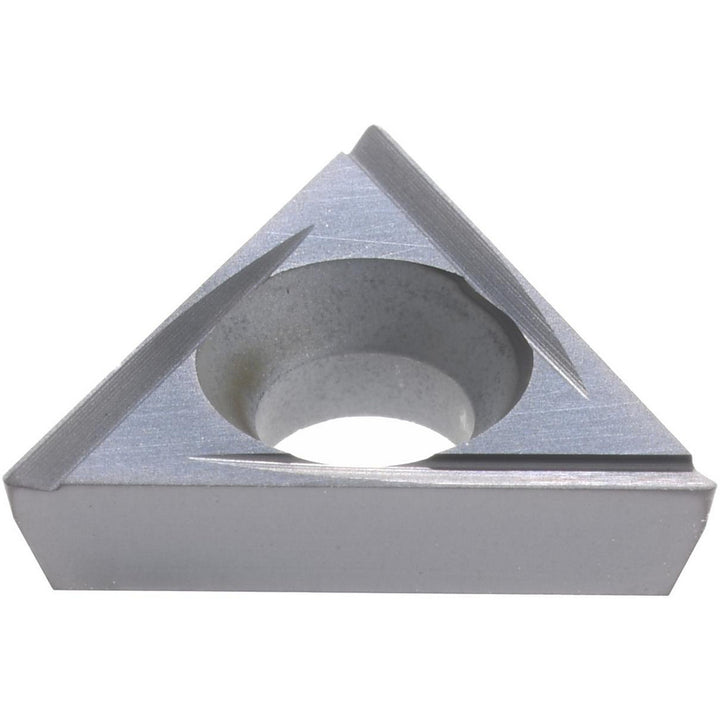

The Kennametal 1937580 is a TOHH110202L solid carbide indexable insert, grade KC5010, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0070
Hole diameter0.1300
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert materialSolid Carbide
Insert size code2205
Insert styleTPCG
Iso codeTOHH110202L
Manufacturer gradeKC5010
Material gradeMicrograin
Relief angle11
ShapeTriangle
Thickness in3/32
