Kennametal

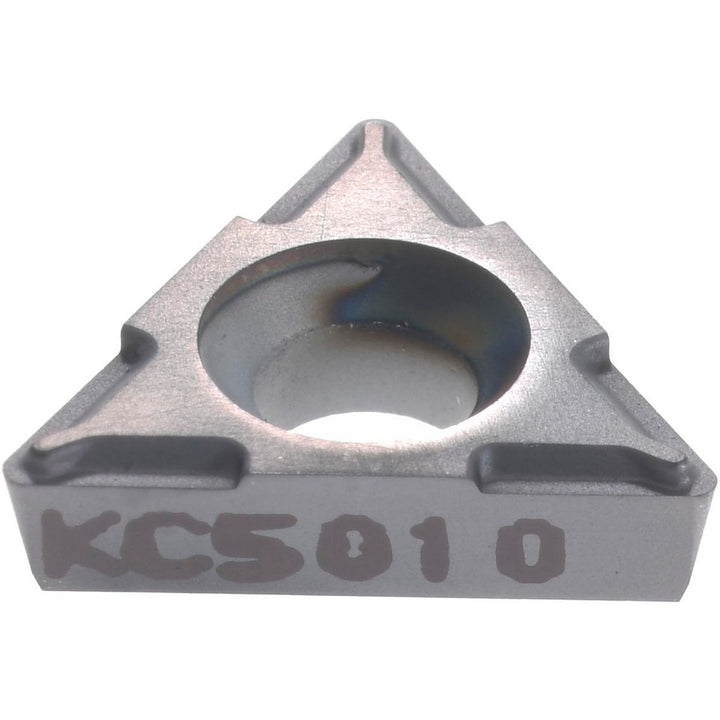

1/4" IC Solid Carbide Insert, Grade KC5010, TiC/TiCN/TiN - Kennametal 1937601
MFR# 1937601
$24.49List $29.89
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKC5010
MaterialSolid Carbide
CoatingTiC/TiCN/TiN
Description
The Kennametal 1937601 is a solid carbide indexable insert, grade KC5010, TiC/TiCN/TiN coated.
Specifications
Coating finishTiC/TiCN/TiN
Coating processCVD
Corner radius in1/64
Hole diameter0.1300
Included angle60
Inscribed circle in1/4
Insert materialSolid Carbide
Insert size code221
Insert styleTPCH
Manufacturer gradeKC5010
Relief angle11
ShapeTriangle
Thickness in3/32
