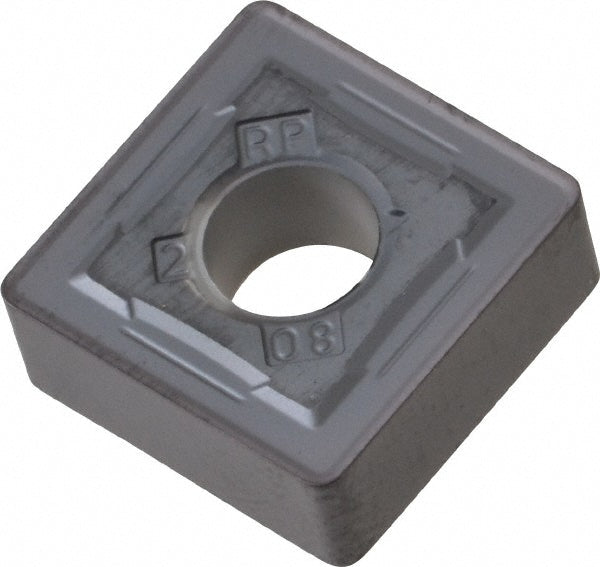

SNMG432 Carbide Insert, Grade KC5010, TiAlN - Kennametal 1940971

Kennametal

SNMG432 Carbide Insert, Grade KC5010, TiAlN - Kennametal 1940971

MFR# 1940971ISO/ANSI# SNMG432RPSeries KENLOC

$23.52List $28.71 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC5010
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 1940971 is a SNMG432 carbide indexable insert, grade KC5010, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerRP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle90
Industry standard numberSNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Length range0.5000 - 0.6000
Manufacturers catalog number1940971
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
