Kennametal

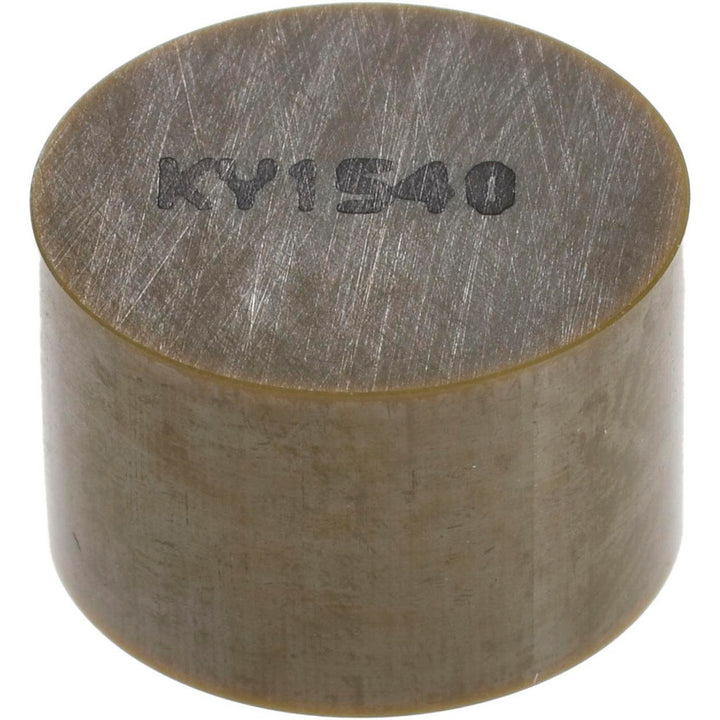

R - Round 1/2" IC Ceramic Insert, Grade KY1540 - Kennametal 1943801
MFR# 1943801ISO/ANSI# RNG120700Series KENDEX
$33.24List $39.87
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKY1540
MaterialCeramic
Description
The Kennametal 1943801 is a ceramic indexable insert, grade KY1540. Suited for steel, superalloys & titanium.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Included angle360
Industry standard numberRNG45T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso insert codeRNG120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number1943801
Manufacturer gradeKY1540
Material gradeC4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
