Kennametal

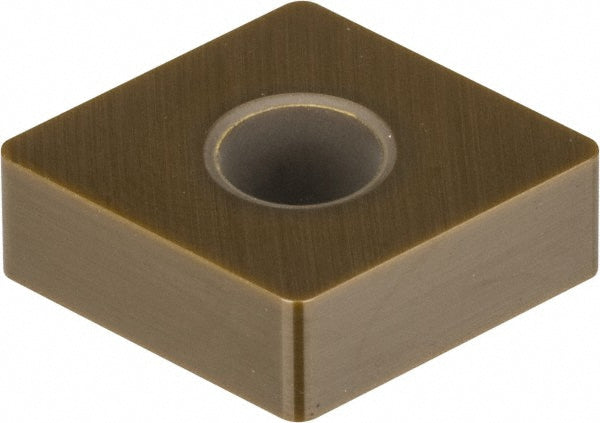

C - Diamond (Rhombic) 80-Deg 1/2" IC Ceramic Insert, Grade KY1540 - Kennametal 1943834
MFR# 1943834ISO/ANSI# CNGA120408Series KENLOC
$38.95List $46.71
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKY1540
MaterialCeramic
Description
The Kennametal 1943834 is a ceramic indexable insert, grade KY1540. Suited for superalloys & titanium.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432E
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1943834
Manufacturer gradeKY1540
Material gradeC4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
