Kennametal

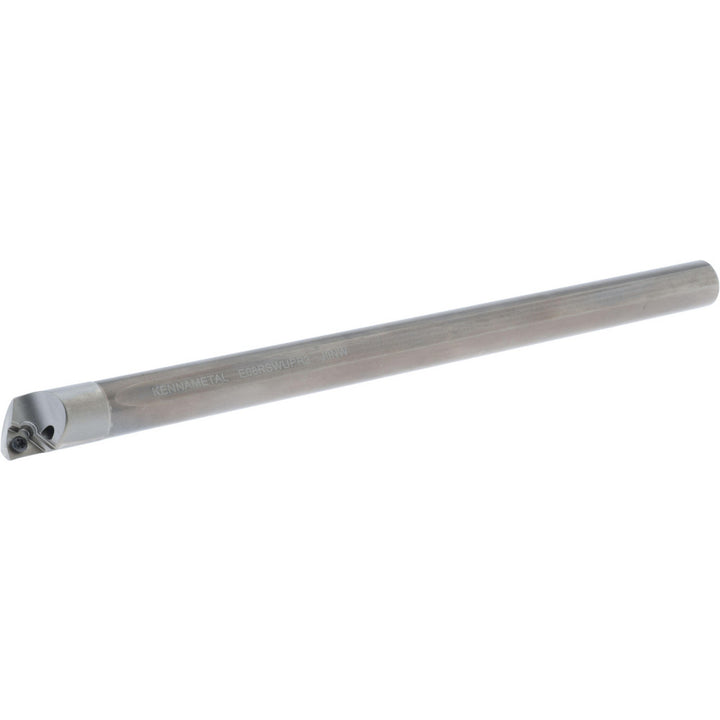

Indexable Boring - Kennametal 1950390
MFR# 1950390Series Q
$505.57List $617.12
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1950390 indexable boring. Series Q.
Specifications
Center to cutting edge0.2730
Coolant hole diameter0.1870
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityWP..
Insert holding methodScrew
Insert inscribed circle0.2500
Insert thickness0.0940
Lead angle3
Maximum bore depth5.0000
Minimum bore diameter0.5400
Multi use toolNo
Overall length in8
RakeNeutral
Rake angle0.00
Shank diameter in1/2
Toolholder styleGCBIW
Tool materialSolid Carbide (Shank); Steel (Head)
