Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 1952776
MFR# 1952776Cat# A4R0505M05U00GMNSeries A4
$39.46List $48.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

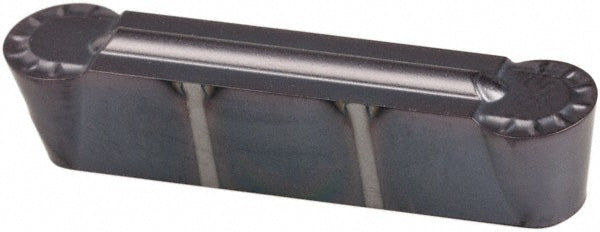

The Kennametal 1952776 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMN
Coating finishTiAlN
Coating processPVD
Corner radius0.0996
Cutting width0.1988
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert size0505M0
Insert styleR
Manufacturers catalog numberA4R0505M05U00GMN
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1614
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length0.9843
