Kennametal
Carbide Insert, Grade KC5010, TiAlN - Kennametal 1952778
MFR# 1952778Cat# A4R0400M04P00GMPSeries A4
$38.57List $47.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC5010
MaterialCarbide
CoatingTiAlN
Description

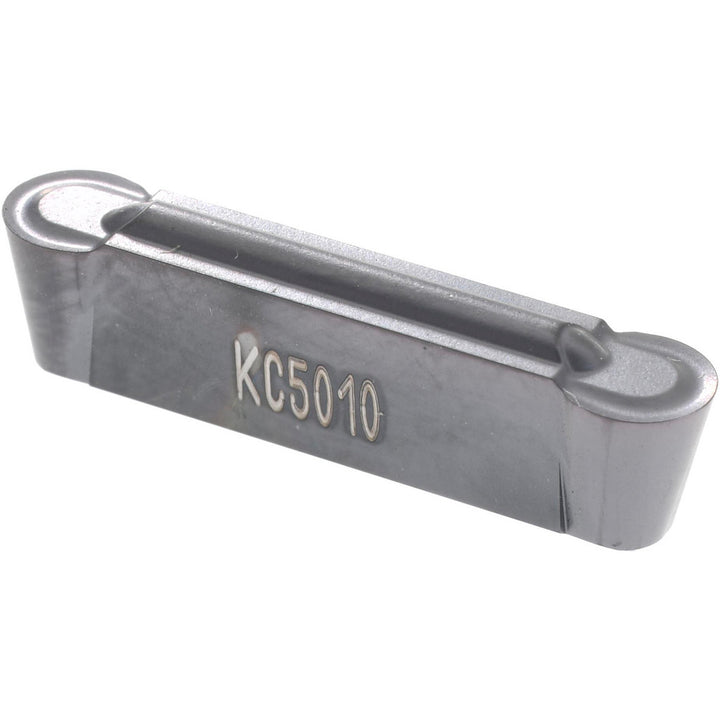

The Kennametal 1952778 is a carbide indexable insert, grade KC5010, TiAlN coated.
Specifications
Chip breakerGMP
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size0400M0
Insert styleR
Manufacturers catalog numberA4R0400M04P00GMP
Manufacturer gradeKC5010
Material gradeC3; C4
Maximum depth of cut0.1339
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
RakePositive
