Kennametal

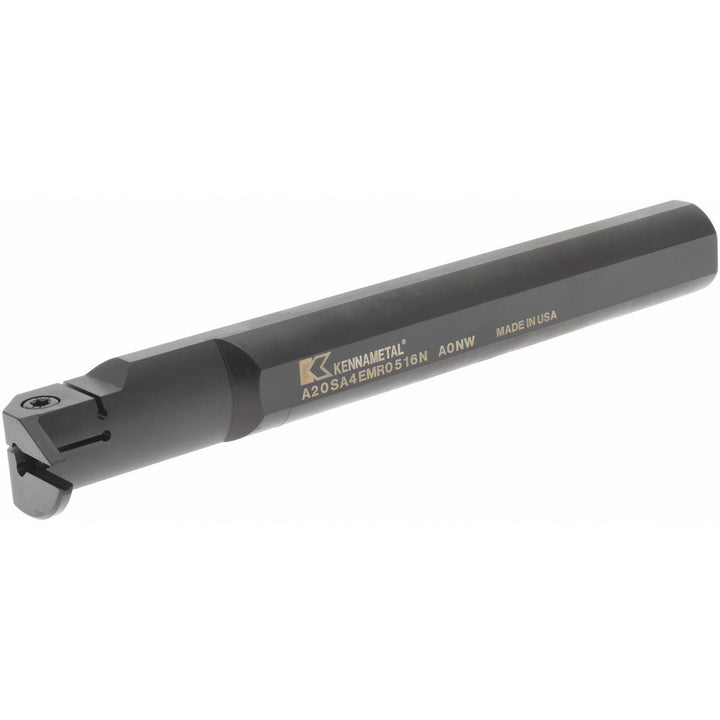

Indexable Grooving - Kennametal 1953349
MFR# 1953349Series A4
$399.60List $487.76
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1953349 indexable grooving. Series A4.
Specifications
Back of bar to cutting edge1.0230
Center to cutting edge1.0240
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityA4..05..
Insert holding methodClamp
Insert seat size5
Maximum bore depth2.5200
Maximum depth of cut0.6300
Minimum groove width0.1970
Minimum hole diameter1.7320
Multi use toolYes
Overall length10
Toolholder materialSteel
Toolholder styleA-A4E
Toolholder typeInternal Grooving
