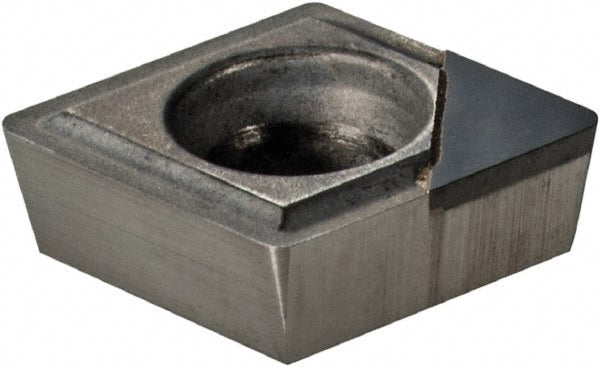

C - Diamond (Rhombic) 80-Deg 1/4" IC PCD Insert, Grade KD1405, Diamond - Kennametal 1998291

Kennametal

C - Diamond (Rhombic) 80-Deg 1/4" IC PCD Insert, Grade KD1405, Diamond - Kennametal 1998291

MFR# 1998291ISO/ANSI# CPGW060204Series Screw-On

$171.04List $205.09 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKD1405
MaterialPCD
CoatingDiamond

Description

The Kennametal 1998291 is a pcd indexable insert, grade KD1405, Diamond coated. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeCPGW2151
Ansi size code2151
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishDiamond
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Industry standard numberCPGW2151E
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCPGW
Insert thickness in3/32
Iso insert codeCPGW060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number1998291
Manufacturer gradeKD1405
Material gradeN05; N10
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
