Kennametal

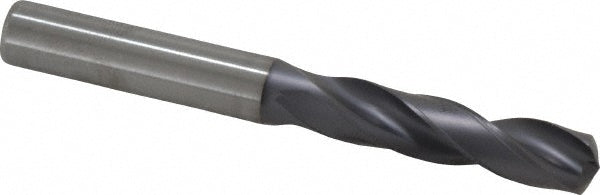

0.3780" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 1998947
MFR# 1998947Series B966A
$108.29List $138.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 1998947 is a 0.3780" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, steel. Series B966A.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.006 to +0.021 mm
Drill bit gradeDynapoint High Performance
Drill bit size0.3780
Drill bit size range0.3500 to 0.4000
Drill point angle140
Drill point length (mm)1.60
Flute length (mm)47.00
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationParallel
Web thinningWeb-Thinned
