Kennametal

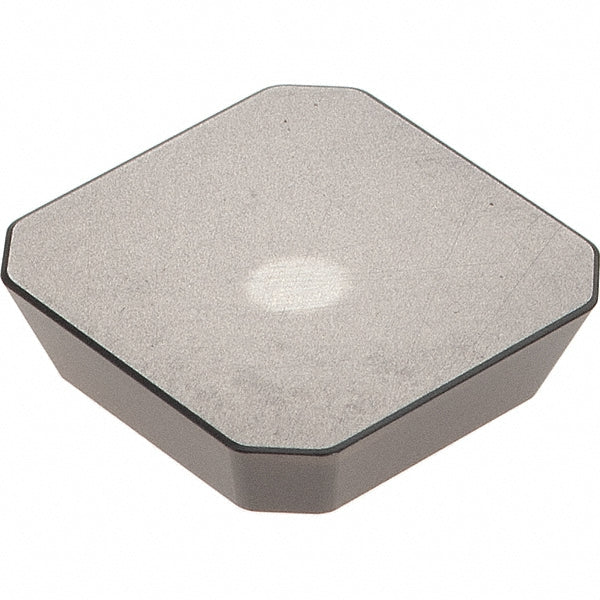

SEKN1203AFSNGN Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2192070
MFR# 2192070ISO/ANSI# SEKN1203AFSNGNCat# SEKN1203AFSNGNSeries SEKN
$34.09List $41.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 2192070 is a SEKN1203AFSNGN solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Chip breakerGN
Coating finishTiN
Coating processCVD
Corner radius0.0394
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSEKN
Iso codeSEKN1203AFSNGN
Manufacturers catalog numberSEKN1203AFSNGN
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Rake angle0
Relief angle20.00
Thickness in1/8
Thickness range0.1250 to 0.1500
