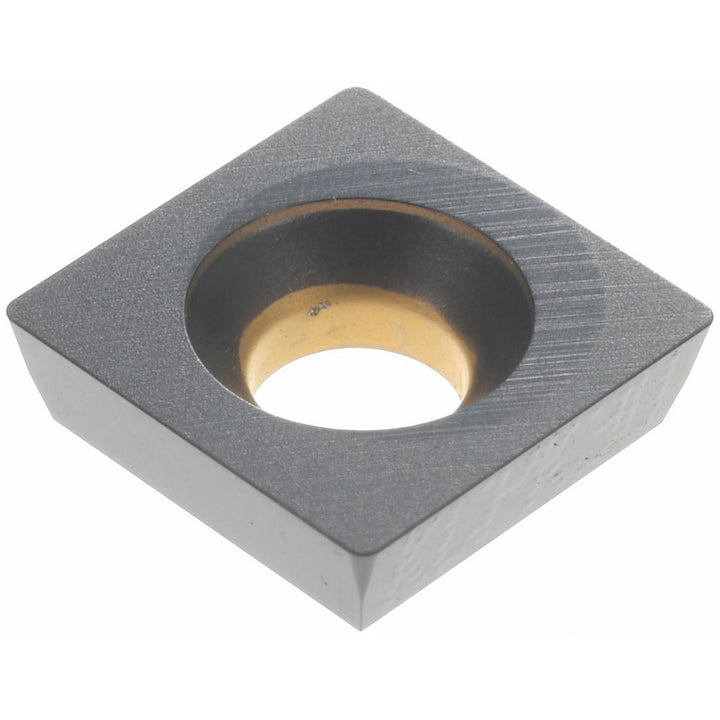

SDEB080204 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210029

Kennametal

SDEB080204 Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 2210029

MFR# 2210029ISO/ANSI# SDEB080204Cat# SDEB080204Series SDEB

$31.13List $38.00 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC21/64
ShapeSquare
GradeKCPK30
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 2210029 is a SDEB080204 solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Coating finishTiN
Coating processCVD
Corner radius in1/64
Hole diameter0.1402
Included angle degree90
Inscribed circle in21/64
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size2.
Insert size code2.61.51
Insert styleSDEB
Iso codeSDEB080204
Manufacturers catalog numberSDEB080204
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Relief angle15.00
Thickness in3/32
Thickness range0.0000 to 0.1000
